Salad Weigher

Home >  Products >  Multihead Weigher >  Salad Weigher

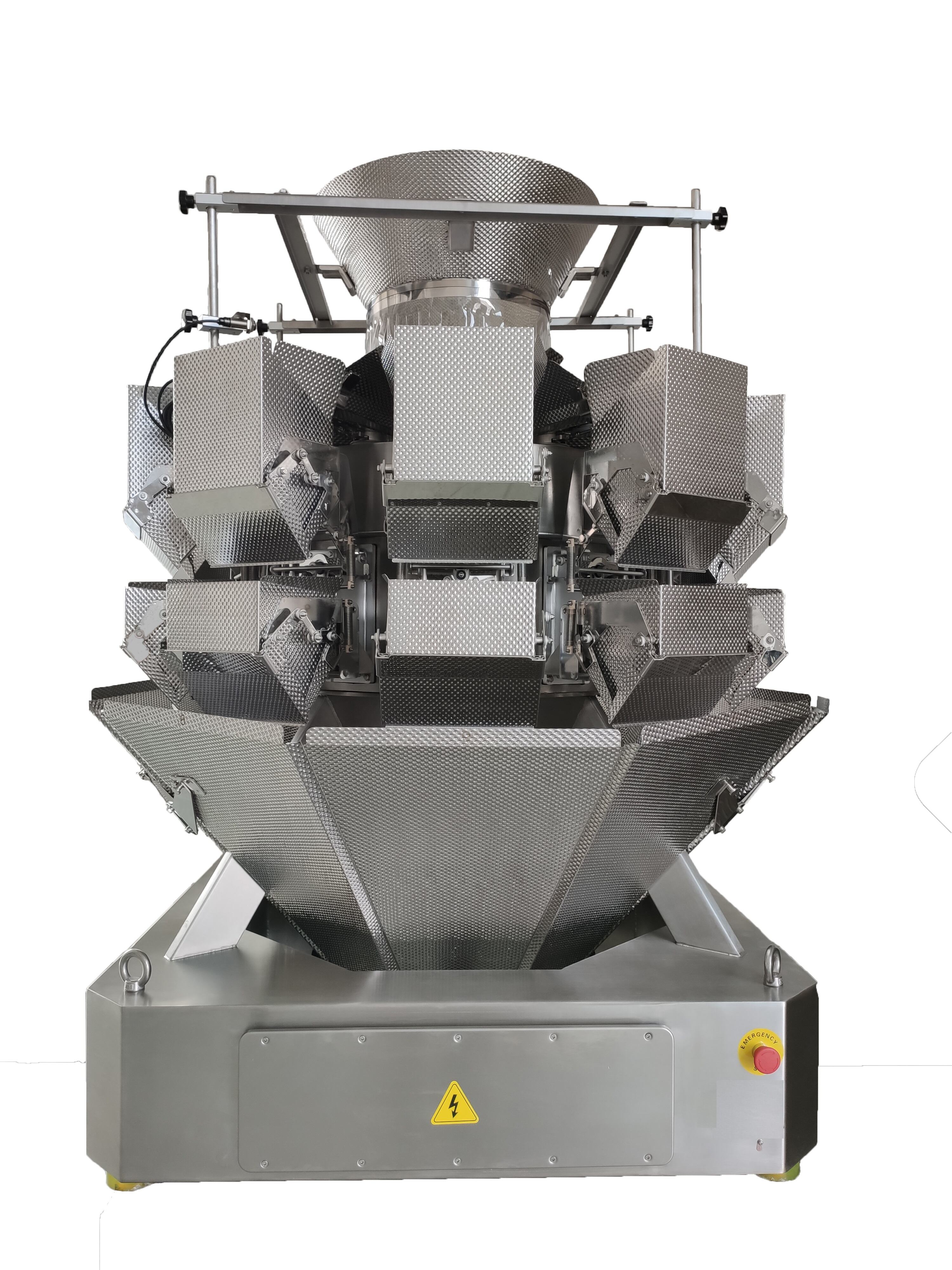

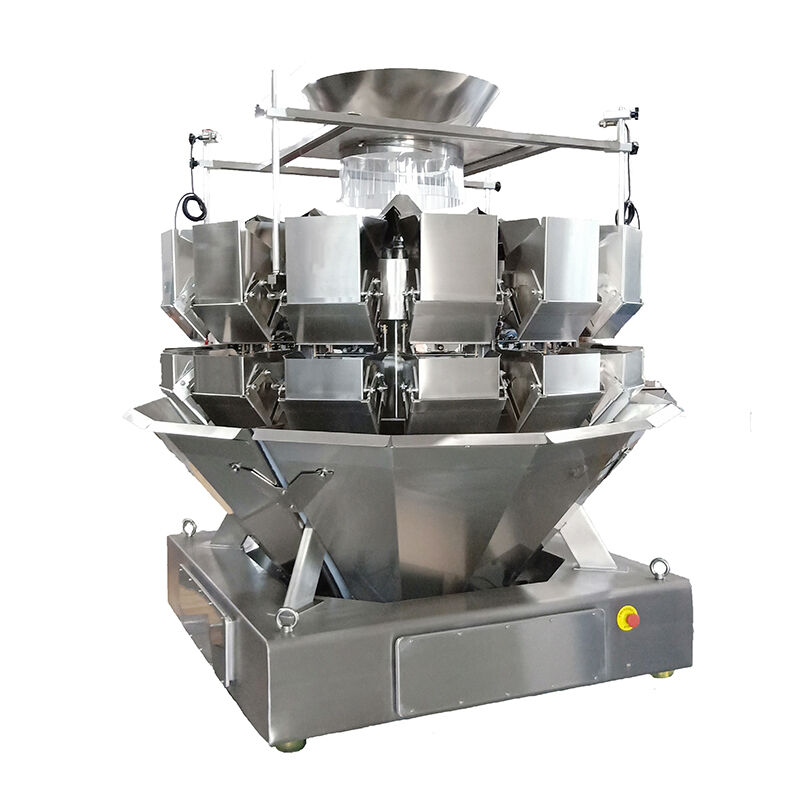

Salad Weigher

Salad Multihead Weigher
Salad Multihead Weigher
Salad Multihead Weigher
Salad Multihead Weigher
Salad Multihead Weigher
Salad Multihead Weigher

Salad Multihead Weigher

It is suitable for weighing big granule products, potatoes, tomatoes, onions, garlic, fruits, cherry tomatoes, round peppers, frozen chicken wings/roots/feet/legs,
vegetable and salad with large target weight or volume.

  • User-friendly help menu in touch screen contributes to easy operation

  • 100 programs for multiple tasks.

  • Program recovery function can reduce operation failure.

Get a Quote
  • Introduction
  • Main Features
  • Application
  • FAQ
Introduction
Model CBW-1A10(50) CBW-1A14(50)
Max. Cap. 100-3000g 100-5000g
Weighing Accuracy 1~10 g 1~10 g
Max. Weighing Speed 40 WPM 70 WPM
Control panel 7"Touch Screen 7"Touch Screen
Hopper Volume 5L (double-door) dimple plate 5L (double-door) dimple plate
Material 304 # SS 304 # SS
Driving System Step Motor Step Motor
Control system Modular Control System Modular Control System
Power supply AC 220V/110V ±10% 50Hz(60Hz)1.5KW AC 220V/110V ±10% 50Hz(60Hz)2KW
Options Weight sensor/plain plate/timing hopper/printer/Overweight reject system/10"touch screen
Packaging dimension L1950W*1280H*1700mm L2195W*1380H*1810mm
Gross weight 580kg 650kg


Main Features

• User-friendly help menu in touch screen contributes to easy operation

• 100 programs for multiple tasks.

• Program recovery function can reduce operation failure.

• High precision digital load cell.

• No products auto pause function can improve weighing stability and accuracy.

• Modular control system, AD cards no need Number, can be interchangeable.

• Each drive board is independent, can be changed freely, even in different weighers.

• Friendly HMI, similar with mobile phone operation icons, make operation more easily and simple.

• Linear amplitude can be adjusted independently.

• 3-level password protection for administrators;

• Free set the parameter value during running;

• Screen with SS outlet covering avoid external shock;

• All the main menus can be observed at one screen.

Application

It is suitable for weighing big granule products, potatoes, tomatoes, onions, garlic, fruits, cherry tomatoes, round peppers, frozen chicken wings/roots/feet/legs, vegetable and salad with large target weight or volume.

image.png image.png image.png
Potatoes Tomatoes Green Peppers
image.png image.png image.png
Onions Garlic Purple Onions
FAQ

Q: Is Zhongshan Combiweigh ( called CBW ) a manufacturer?
A: Yes, we are the real manufacturer. We mainly specialized in researching, designing, manu- facturing, marketing and service of multihead weighers, linear weighers, etc. and providing customized weighing solution.
Q: What project can CBW do?
A: Auto or Semi-auto weighing and packaging solution for food and non food industry.
Q: What material can CBW handle and pack?
A: From fine or sticky powder, grain and irregular grains and frozen food or vegetables, etc.
Q: What industry CBW can apply for?
A: Pet food, beans, powder, confectionary, plastic, hardware, or frozen food, etc.
Q: How many kinds of hoppers CBW can supply?
A: For multihead weigher, CBW has 0.5L, 1L, 1.6L, 2.5L 5L hoppers.For linear weigher, CBWhas 3L, 5L, 7.5L, 24L hoppers. There are single-layer feeder pan and double-layer feeder pan for choice.
Q: How to ensure CBW machines' Quanlity?
A: We carry out a hard control procedure on our machines before shipment, including work- ing, aging, testing, and so on. In a word, we try our best to make sure our machine is with long-term stable performance.
Q: What is the warranty for CBW machines?
A: CBW guarantees the whole machine for 12 months, except the fragile parts, starting from the day which the machine is dispatched plus one month.
Q: Are your staff available for oversea installation and service?
A: Yes, we can arrange our staff to make overseas service as per request. In CBW, we have a professional technical supporting and after-sale service team.
