modular check weigher-0

Check Weigher

Home >  Products >  Check Weigher

Check Weigher

Modular Check Weigher
Modular Check Weigher
Modular Check Weigher
Modular Check Weigher
Modular Check Weigher
Modular Check Weigher
Modular Check Weigher
Modular Check Weigher

Modular Check Weigher

Special designed to check the single bag weight is conformed to the preset target weight or not. If over or less weight will be rejected out by the rejection device, qualified bags will be passed to next equipment.

  • Intelligent design, auto program setting for easy operation.

  • User-friendly touch screen with Chinese and English languages;

  • Modular control system;

Get a Quote
  • Introduction
  • Main Features
  • Application
  • Rejection way
  • FAQ
Introduction
Model CBW-1C1 CBW-1C2 CBW-1C5
Weighing range 10-1000 gr 10-2000 gr 10-5000 gr
Avg. Accuracy 0.5~1.5 gr 1~1.5 gr 1~3 gr
Production wpm 10-60 10-60 10-60
Touch Screen 7inch 7inch 7inch
Construction material 304#SS 304#SS 304#SS
Preset Programs 50 50 50
Power AC220V ±10% 50Hz(60Hz) AC220V ±10% 50Hz(60Hz) AC220V ±10% 50Hz(60Hz)
Control system Modular control system Modular control system Modular control system

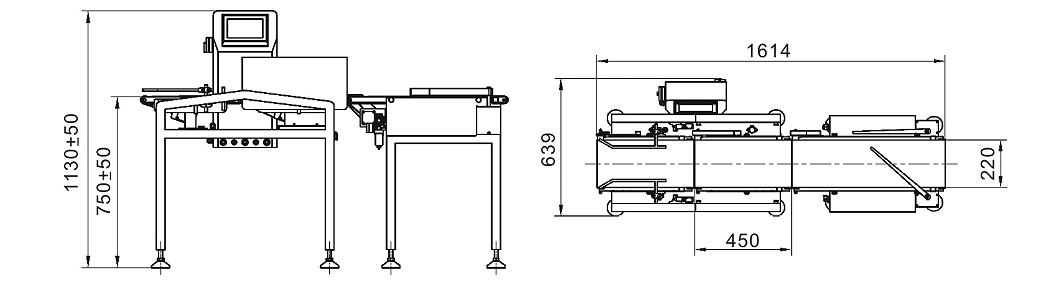

Packaging dimension L970 * W940 * H1295mm
Gross weight 250kg
Main Features

• Intelligent design, auto program setting for easy operation.

• User-friendly touch screen with Chinese and English languages;

• Modular control system;

• Quick release design, Convenient for disassembly and cleaning

• Intelligent malfunction alarm by text displaying.

• Detailed production records.

Application

Special designed to check the single bag weight is conformed to the preset target weight or not. If over or less weight will be rejected out by the rejection device, qualified bags will be passed to next equipment.

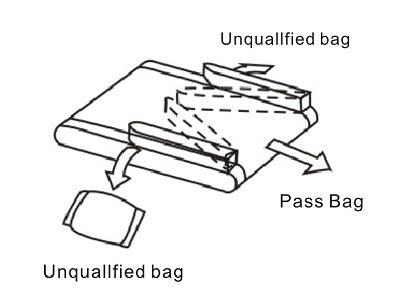

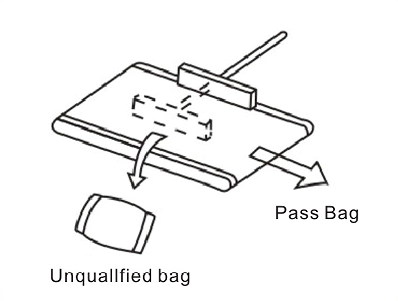

Rejection way
image.png image.png image.png

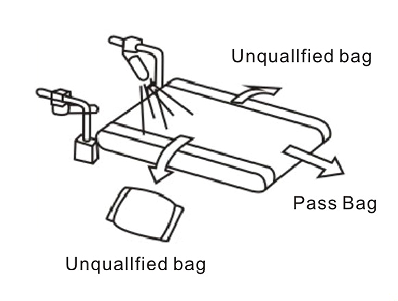

Pneumatic Pusher Arm-reject Air Blowing
FAQ

Q: Is Zhongshan Combiweigh ( called CBW ) a manufacturer?
A: Yes, we are the real manufacturer. We mainly specialized in researching, designing, manu- facturing, marketing and service of multihead weighers, linear weighers, etc. and providing customized weighing solution.
Q: What project can CBW do?
A: Auto or Semi-auto weighing and packaging solution for food and non food industry.
Q: What material can CBW handle and pack?
A: From fine or sticky powder, grain and irregular grains and frozen food or vegetables, etc.
Q: What industry CBW can apply for?
A: Pet food, beans, powder, confectionary, plastic, hardware, or frozen food, etc.
Q: How many kinds of hoppers CBW can supply?
A: For multihead weigher, CBW has 0.5L, 1L, 1.6L, 2.5L 5L hoppers.For linear weigher, CBWhas 3L, 5L, 7.5L, 24L hoppers. There are single-layer feeder pan and double-layer feeder pan for choice.
Q: How to ensure CBW machines' Quanlity?
A: We carry out a hard control procedure on our machines before shipment, including work- ing, aging, testing, and so on. In a word, we try our best to make sure our machine is with long-term stable performance.
Q: What is the warranty for CBW machines?
A: CBW guarantees the whole machine for 12 months, except the fragile parts, starting from the day which the machine is dispatched plus one month.
Q: Are your staff available for oversea installation and service?
A: Yes, we can arrange our staff to make overseas service as per request. In CBW, we have a professional technical supporting and after-sale service team.
