cheese multihead weigher-0

Cheese Weigher

Home >  Products >  Multihead Weigher >  Cheese Weigher

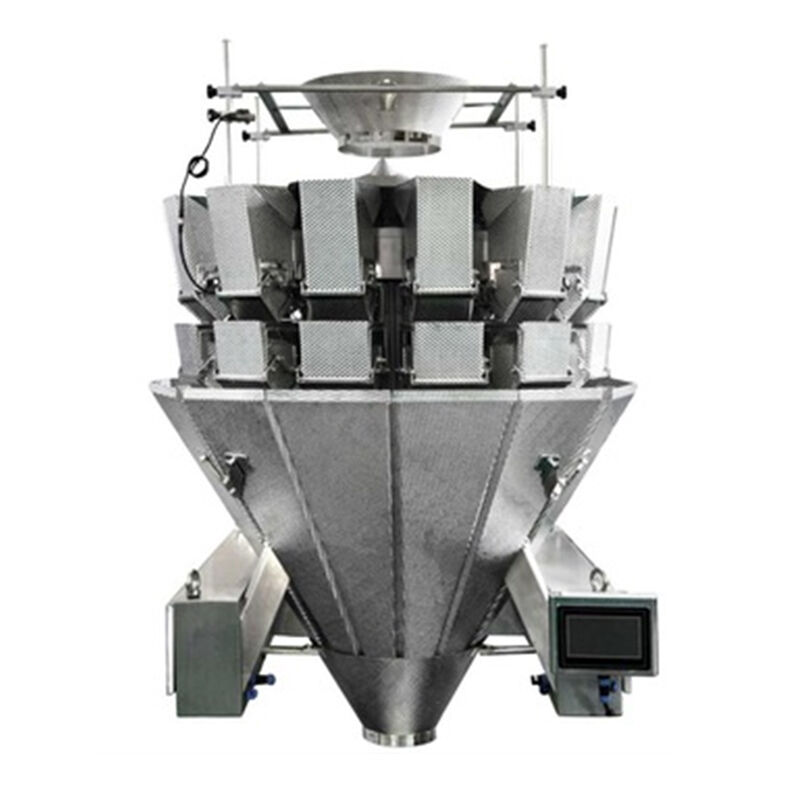

Cheese Weigher

Cheese Multihead Weigher
Cheese Multihead Weigher
Cheese Multihead Weigher
Cheese Multihead Weigher
Cheese Multihead Weigher
Cheese Multihead Weigher

Cheese Multihead Weigher

It is suitable Suitable for weighing soft and sticky material, such as cheese, jelly candy, cotton candy, preserved fruits, candied fruit, etc.

  • Ip65 waterproof machine frame is adopted, with higher waterproof grade.

  • Enhanced linear vibrator improves the flowability of material.

  • The declinational special linear vibrator pans can solve the problem of material feeding unsmoothly.

Get a Quote
  • Introduction
  • Main Features
  • Application
  • FAQ
Introduction
Model CBW-1A10(25) CBW-1A14(25)
Max. Cap. 10-1000g 10-2000g
Weighing Accuracy 0.5~2 g 0.5~2 g
Max. Weighing Speed 60 WPM 120 WPM
Control panel 7"Touch Screen 7"Touch Screen
Hopper Volume 2.5L (double-door) dimple plate 2.5L (double-door) dimple plate
Material 304 # SS 304 # SS
Driving System Step Motor Step Motor
Control system Modular Control System Modular Control System
Power supply AC220V ±10% 50Hz(60Hz)1KW AC220V ±10% 50Hz(60Hz)1.4KW
Options Weight sensor/timing hopper/printer/Overweight reject system/10"touch screen
Packaging dimension L1650W1120H1330mm L1720W1120H1330mm
Gross weight 400kg 480kg


Main Features

• Ip65 waterproof machine frame is adopted, with higher waterproof grade.

• Enhanced linear vibrator improves the flowability of material.

• The declinational special linear vibrator pans can solve the problem of material feeding unsmoothly.

• 60 degree dimple discharge chute contributes to less sticky problem.

• Speed adjustable rotary top cone is suitable for different product feeding.

• No products auto pause function can improve weighing stability and accuracy.

• All the hoppers can be opened to make cleaning easily and quickly.

• New actuator design reduces the mechanical vibration and improves the accuracy of load cell.

• Modular control system, AD cards no need Number, can be interchangeable.

• Each drive board is independent, can be changed freely, even in different weighers.

• Friendly HMI, similar with mobile phone operation icons, make operation more easily and simple.

• The software versatility, strong compatibility, different weighers using the same control system.

Application

It is suitable Suitable for weighing soft and sticky material, such as cheese, jelly candy, cotton candy, preserved fruits, candied fruit, etc.

Gummy Candy
FAQ

Q: Is Zhongshan Combiweigh ( called CBW ) a manufacturer?
A: Yes, we are the real manufacturer. We mainly specialized in researching, designing, manu- facturing, marketing and service of multihead weighers, linear weighers, etc. and providing customized weighing solution.
Q: What project can CBW do?
A: Auto or Semi-auto weighing and packaging solution for food and non food industry.
Q: What material can CBW handle and pack?
A: From fine or sticky powder, grain and irregular grains and frozen food or vegetables, etc.
Q: What industry CBW can apply for?
A: Pet food, beans, powder, confectionary, plastic, hardware, or frozen food, etc.
Q: How many kinds of hoppers CBW can supply?
A: For multihead weigher, CBW has 0.5L, 1L, 1.6L, 2.5L 5L hoppers.For linear weigher, CBWhas 3L, 5L, 7.5L, 24L hoppers. There are single-layer feeder pan and double-layer feeder pan for choice.
Q: How to ensure CBW machines' Quanlity?
A: We carry out a hard control procedure on our machines before shipment, including work- ing, aging, testing, and so on. In a word, we try our best to make sure our machine is with long-term stable performance.
Q: What is the warranty for CBW machines?
A: CBW guarantees the whole machine for 12 months, except the fragile parts, starting from the day which the machine is dispatched plus one month.
Q: Are your staff available for oversea installation and service?
A: Yes, we can arrange our staff to make overseas service as per request. In CBW, we have a professional technical supporting and after-sale service team.
