16l multihead weigher-0

Standard Weigher

Home >  Products >  Multihead Weigher >  Standard Weigher

Standard Weigher

1.6L Multihead Weigher
1.6L Multihead Weigher

1.6L Multihead Weigher

It is suitable for weighing of granule, slice, roll or irregular shape materials, such as candies, seeds, jelly, fries, coffee granules, peanuts, puffy food, biscuits, chocolates, nuts, pet food, etc.

  • Mold hoppers can be change with each other.

  • High speed stagger dump function.

  • User-friendly help menu in touch screen contributes to easy operation

Get a Quote
  • Introduction
  • Main Features
  • Application
  • FAQ
Introduction
Item CBW-1A8 (16) CBW-1A10 (16) CBW-1A11 (16) CBW-1A14 (16)
Max. Cap. 10–300 g 10–800 g 10–1500 g 10–2000 g
Weighing Accuracy 0.5–2 g 0.5–2 g 0.5–2 g 0.5–2 g
Max. Weighing Speed 55 WPM 60 WPM 65 WPM 120 WPM
Control Panel 7" Touch Screen 7" Touch Screen 7" Touch Screen 7" Touch Screen
Hopper Volume 1.6 L (Single-door), plain plate 1.6 L (Single-door), plain plate 1.6 L (Single-door), plain plate 1.6 L (Single-door), plain plate
Material 304 # SS 304 # SS 304 # SS 304 # SS
Driving System Step motor Step motor Step motor Step motor
Control System Modular Control System Modular Control System Modular Control System Modular Control System
Power Supply AC220V 50Hz / 60Hz 0.8KW AC220V 50Hz / 60Hz 1KW AC220V 50Hz / 60Hz 1.1KW AC220V 50Hz / 60Hz 1.4KW
Options dimple plate / timing hopper / printer / rotary top cone / multi-mouth top cone / overweight reject system / 10" touch screen dimple plate / timing hopper / printer / rotary top cone / multi-mouth top cone / overweight reject system / 10" touch screen dimple plate / timing hopper / printer / rotary top cone / multi-mouth top cone / overweight reject system / 10" touch screen dimple plate / timing hopper / printer / rotary top cone / multi-mouth top cone / overweight reject system / 10" touch screen
Packing Dimension L1610 × W980 × H1100 mm L1580 × W1040 × H1220 mm L1650 × W1080 × H1110 mm L1730 × W1120 × H1310 mm
Gross Weight 300 kg 360 kg 400 kg 460 kg

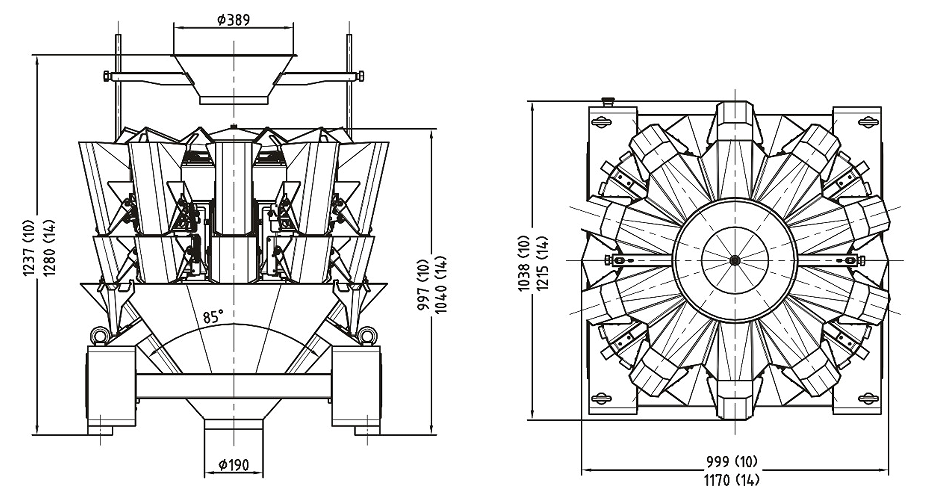

1.6L Multihead Weigher supplier

Main Features

• Mold hoppers can be change with each other.

• High speed stagger dump function.

• User-friendly help menu in touch screen contributes to easy operation.

• 100 programs for multiple tasks.

• Program recovery function can reduce operation failure.

• High precision digital load cell.

• Linear amplitude can be adjusted independently.

• No products auto pause function can improve weighing stability and accuracy.

• Modular control system, AD cards no need Number, can be interchangeable.

• All the hoppers can be opened to make cleaning easily and quickly.

• New actuator design reduces the mechanical vibration and improves the accuracy of load cell.

• Each drive board is independent, can be changed freely, even in different weighers.

• Friendly HMI, similar with mobile phone operation icons, make operation more easily and simple.

• Weighers with strong self-checking function, can realize the closed loop testing, real-time detect abnormalities in each node, and real-time display in human-machine interface.

• The software versatility, strong compatibility, different weighers using the same control system.

• The function of measurement by counting pieces or components can satisfy your various requirements.

Application

It is suitable for weighing of granule, slice, roll or irregular shape materials, such as candies, seeds, jelly, fries, coffee granules, peanuts, puffy food, biscuits, chocolates, nuts, pet food, etc.

image.png image.png image.png
Candy Nuts Wrapped Candy
image.png image.png image.png
Chips Garlic

Walnut Kernels
FAQ

Q: Is Zhongshan Combiweigh ( called CBW ) a manufacturer?
A: Yes, we are the real manufacturer. We mainly specialized in researching, designing, manu- facturing, marketing and service of multihead weighers, linear weighers, etc. and providing customized weighing solution.
Q: What project can CBW do?
A: Auto or Semi-auto weighing and packaging solution for food and non food industry.
Q: What material can CBW handle and pack?
A: From fine or sticky powder, grain and irregular grains and frozen food or vegetables, etc.
Q: What industry CBW can apply for?
A: Pet food, beans, powder, confectionary, plastic, hardware, or frozen food, etc.
Q: How many kinds of hoppers CBW can supply?
A: For multihead weigher, CBW has 0.5L, 1L, 1.6L, 2.5L 5L hoppers.For linear weigher, CBWhas 3L, 5L, 7.5L, 24L hoppers. There are single-layer feeder pan and double-layer feeder pan for choice.
Q: How to ensure CBW machines' Quanlity?
A: We carry out a hard control procedure on our machines before shipment, including work- ing, aging, testing, and so on. In a word, we try our best to make sure our machine is with long-term stable performance.
Q: What is the warranty for CBW machines?
A: CBW guarantees the whole machine for 12 months, except the fragile parts, starting from the day which the machine is dispatched plus one month.
Q: Are your staff available for oversea installation and service?
A: Yes, we can arrange our staff to make overseas service as per request. In CBW, we have a professional technical supporting and after-sale service team.
