Vacuum Packaging Machine

Vacuum chamber packaging machine

Material information: Diameter 240mm, height 140mm, pickled whole cabbage, slightly moist.

Weight of single cabbage: about 2KG

Customer-specified bag width: 315mm, film width 660mm, vertical seal 15*2mm.

Packaging film material: PA\PE, thickness: 0.07mm.

Introduction
Technical Parameter
Packaging machine electrical brands
FAQ

Introduction

Product: Whole cabbage

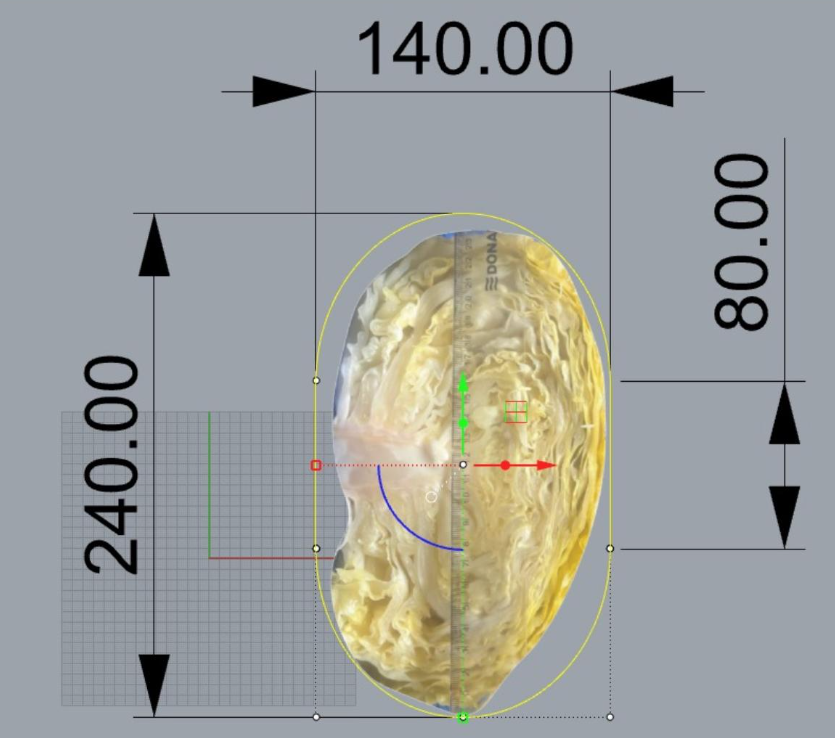

Material information: Diameter 240mm, height 140mm, pickled whole cabbage, slightly moist.

Weight of single cabbage: about 2KG

Customer-specified bag width: 315mm, film width 660mm, vertical seal 15*2mm.

Packaging film material: PA\PE, thickness: 0.07mm.

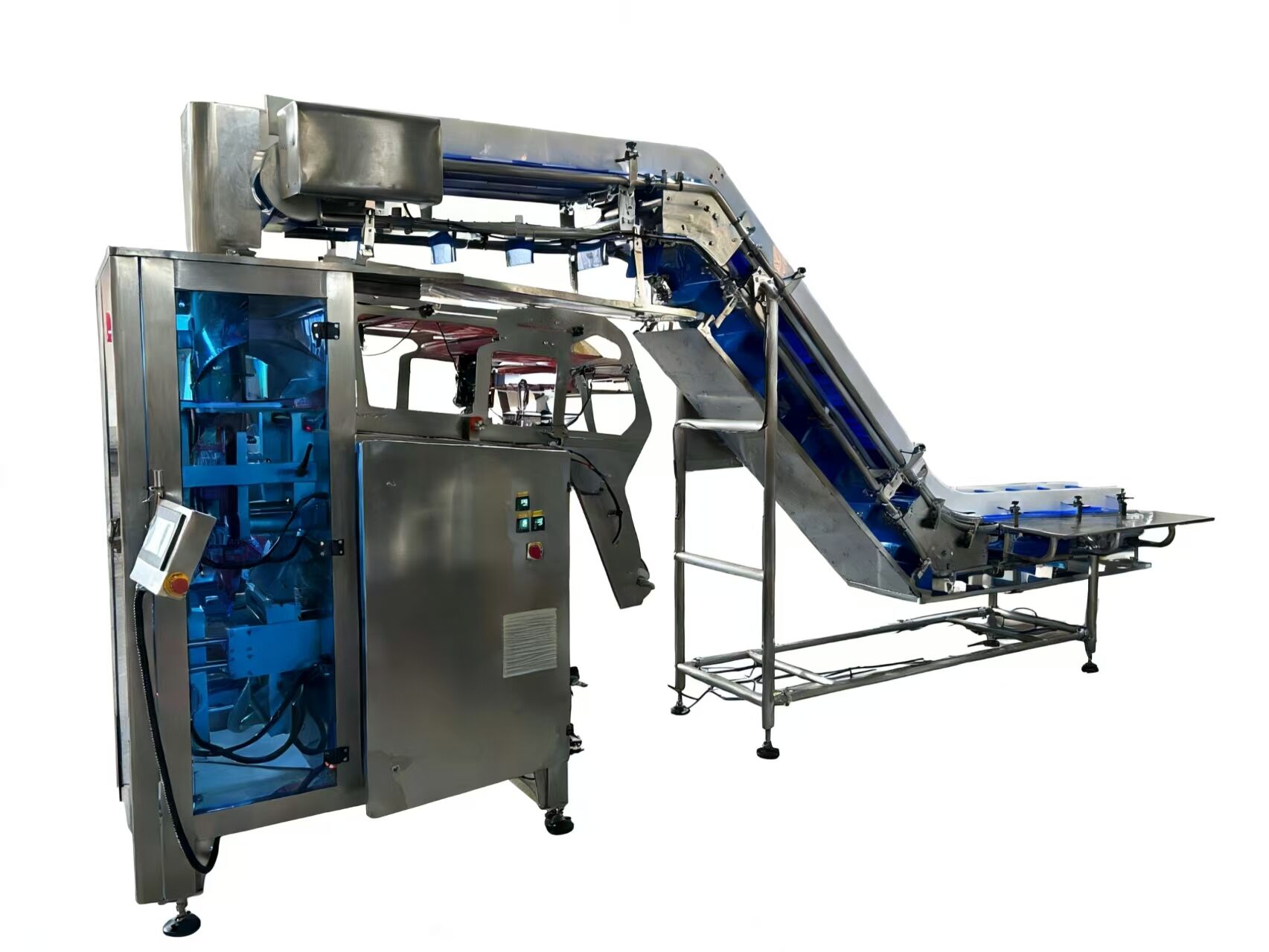

Requirements: Use a manual feeding belt conveyor to put the cabbages one by one into the conveyor station block, and feed them to the vertical packaging machine in a step-by-step manner for packaging, and vacuum packaging needs to be completed on the vertical packaging machine.


Technical Parameter

No	Tech Parameter	Reference Picture

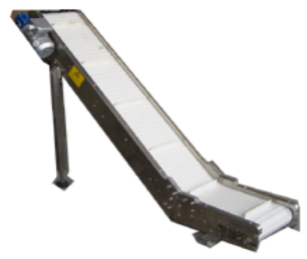

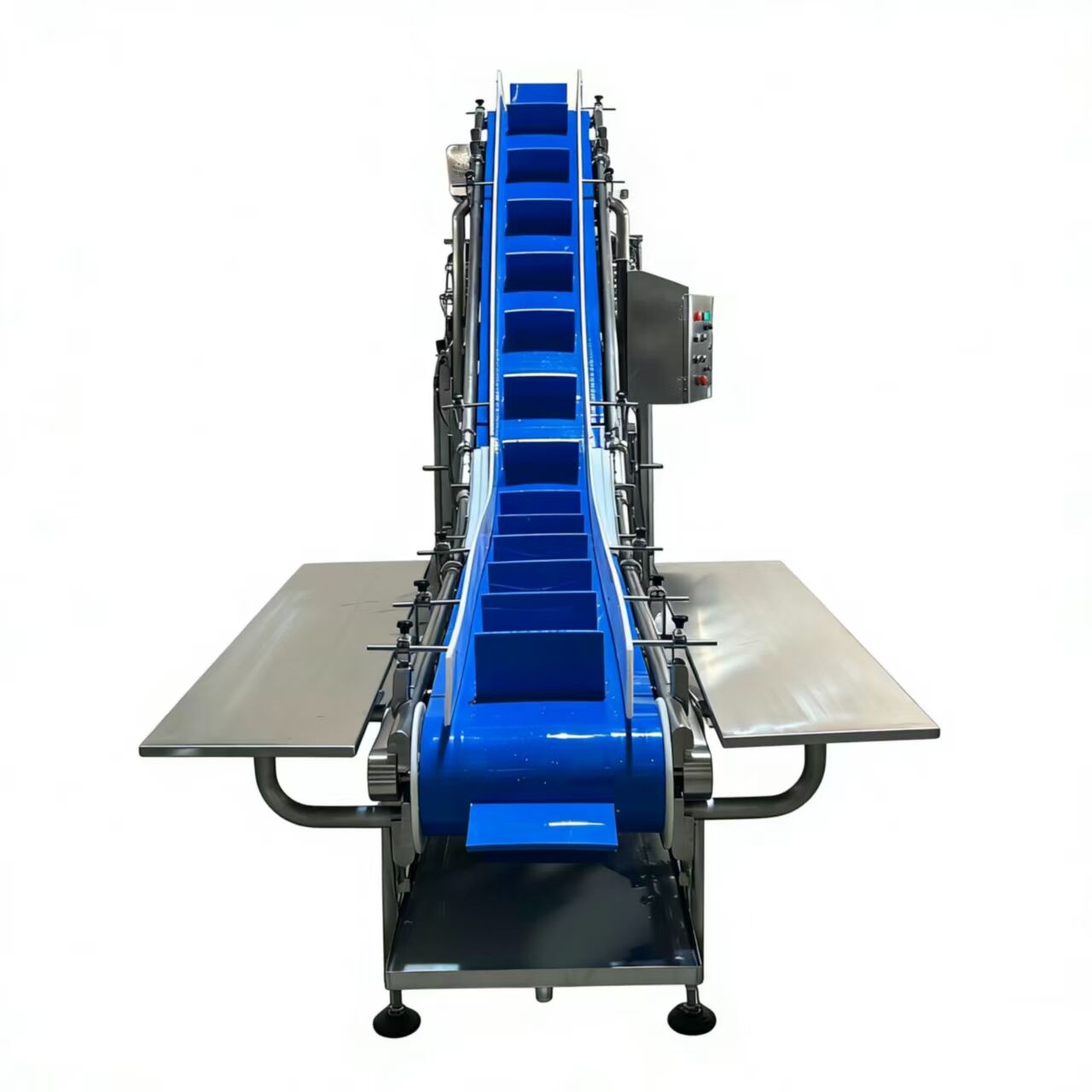

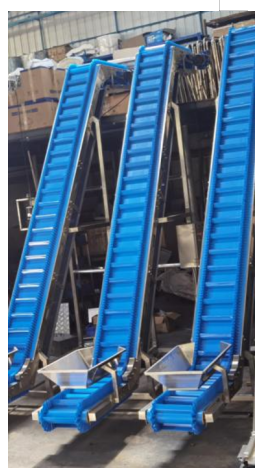

1	CBW-Q Inclined Conveyor + Vibration feeder Lifting height: 1.83m Lifting speed: 0-17m/min Lifting capacity: 6m3/h Power:220V 50Hz, 750W Protection level: IP65 Belt material: easy-clean PU belt Power: servo motor plus turbine worm gear reducer Machine material: the whole machine stainless steel 304, including shafts, tensioning seat, etc. Parts are stainless steel 304. Bearing: domestic, bearing seat Seal protection. Remark Structural design in line with the easy to clean maintenance type, no hygiene dead ends.

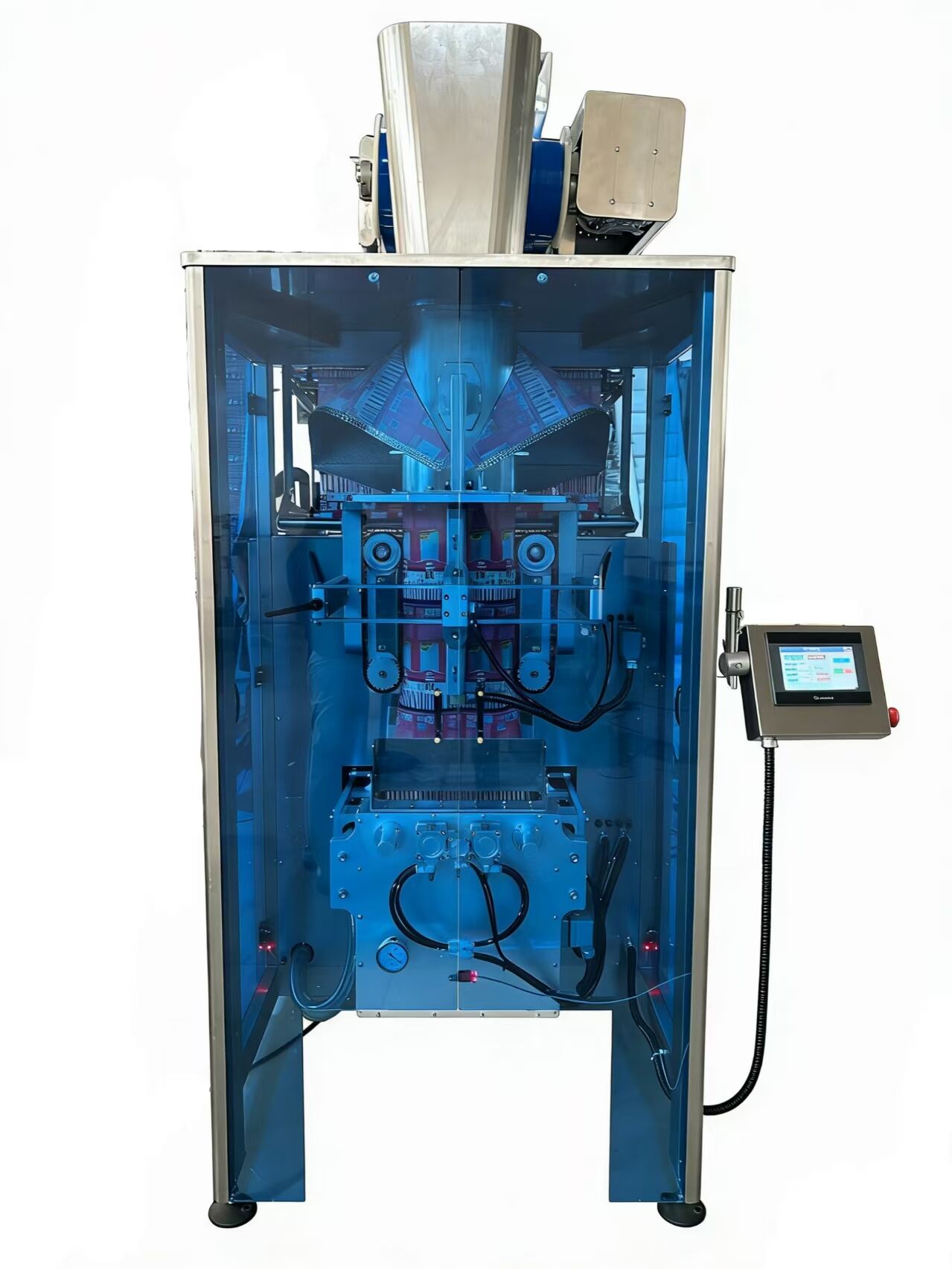

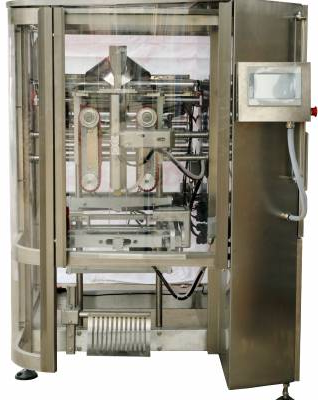

2	CBW-E(MVB68-KP1)Vacuum chamber packaging machine Speed: 4-7 bag/min(depending on material characteristics, packaging requirements and other factors to determine) Bag former material: 316SS Bag size: customised (film width max680mm ) Bag type: vacuum pillow bag (internal pumping) Bag width: 70-330mm Bag length: 60-360mm Film material: OPP/AL/PE,PET/VMPET, PE, etc. Film thickness: 0.04-0.12mm Outer diameter of rolled film: max400mm Inner diameter of roll film core: 76mm Air consumption: 300L/min Compressed air: min 0.5Mpa max 0.8Mpa Protection level: IP54 Operating environment: Relative humidity ≤80%, Temperature 0℃～40℃ Operating noise: ≤80dB(A) Voltage: single-phase, 220V, 50Hz, 6KW Weight of the machine: 530kg Remark: Horizontal sealing power: opening and closing with servo plus planetary gearbox, sealing and cutting with pneumatic Vertical sealing power: pneumatic Film pulling power and method: dual servo plus planetary gearbox ordinary belt film pulling Vacuum chamber main body material: Aluminium 6061 Vacuum power: Vacuum pump Vacuum chamber quantity: 1pc Vacuum degree: 40-200 mbars Vacuum chamber keep vacuum time: 4-6 seconds
3	CBW-F Take-away conveyor Material (outside/inside): 304#SS/Belt conveyor Conveying capacity: 1 m3/hour Conveying speed: 18-23m/min Protection class: IP54 Power supply: 220V/50HZ/45w Packing dimension: L1600W500H1100mm Gross Wt: 80KG

Packaging machine electrical brands

Category	Component	Brand / Specification
Control System	Servo motor and drive	INVT
Control System	PLC control system	INVT
HMI	Touch screen	INVT
Temperature Control	Temperature control module	Autonics
Pneumatic System	Pneumatic components	AirTac
Pneumatic System	Precision pressure regulating valve	AirTac
Power Protection	Strong power protection	Chint
Power Supply	Power supply	Omron
Electrical Control	AC contactor	Schneider
Electrical Control	Main power switch	Schneider
Safety	Emergency stop	Schneider
Relay	Intermediate relay	Weidmuller
Relay	Solid-state relay	Xianli
Electrical Connection	Heavy-duty connector	HAOGNCN
Safety	Safety door switch	Dingtai
Sensor	Proximity switch	Hugong
Sensor	Color code electric eye	Jiaruisi
Coding System	Coding machine	Pneumatic ribbon coding machine
Vacuum System	Vacuum pump	Taiwan Yubang

FAQ

Q: Is Zhongshan Combiweigh ( called CBW ) a manufacturer?

A: Yes, we are the real manufacturer. We mainly specialized in researching, designing, manu- facturing, marketing and service of multihead weighers, linear weighers, etc. and providing customized weighing solution.

Q: What project can CBW do?

A: Auto or Semi-auto weighing and packaging solution for food and non food industry.

Q: What material can CBW handle and pack?

A: From fine or sticky powder, grain and irregular grains and frozen food or vegetables, etc.

Q: What industry CBW can apply for?

A: Pet food, beans, powder, confectionary, plastic, hardware, or frozen food, etc.

Q: How many kinds of hoppers CBW can supply?

A: For multihead weigher, CBW has 0.5L, 1L, 1.6L, 2.5L 5L hoppers.For linear weigher, CBWhas 3L, 5L, 7.5L, 24L hoppers. There are single-layer feeder pan and double-layer feeder pan for choice.

Q: How to ensure CBW machines' Quanlity?

A: We carry out a hard control procedure on our machines before shipment, including work- ing, aging, testing, and so on. In a word, we try our best to make sure our machine is with long-term stable performance.

Q: What is the warranty for CBW machines?

A: CBW guarantees the whole machine for 12 months, except the fragile parts, starting from the day which the machine is dispatched plus one month.

Q: Are your staff available for oversea installation and service?

A: Yes, we can arrange our staff to make overseas service as per request. In CBW, we have a professional technical supporting and after-sale service team.
