3 head linear weigher-0

Linear Weigher

Home >  Products >  Linear Weigher

Linear Weigher

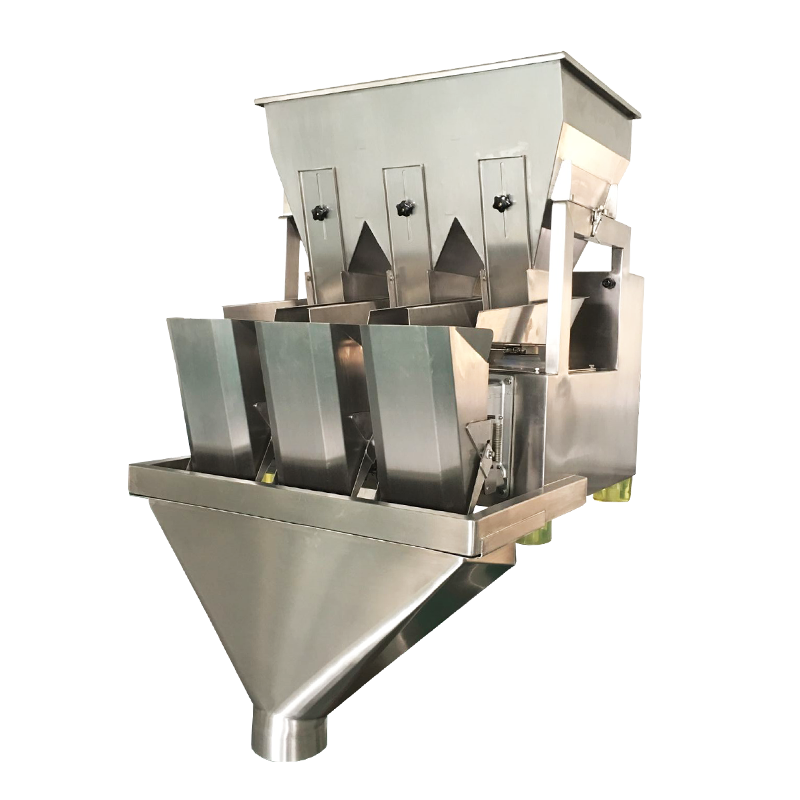

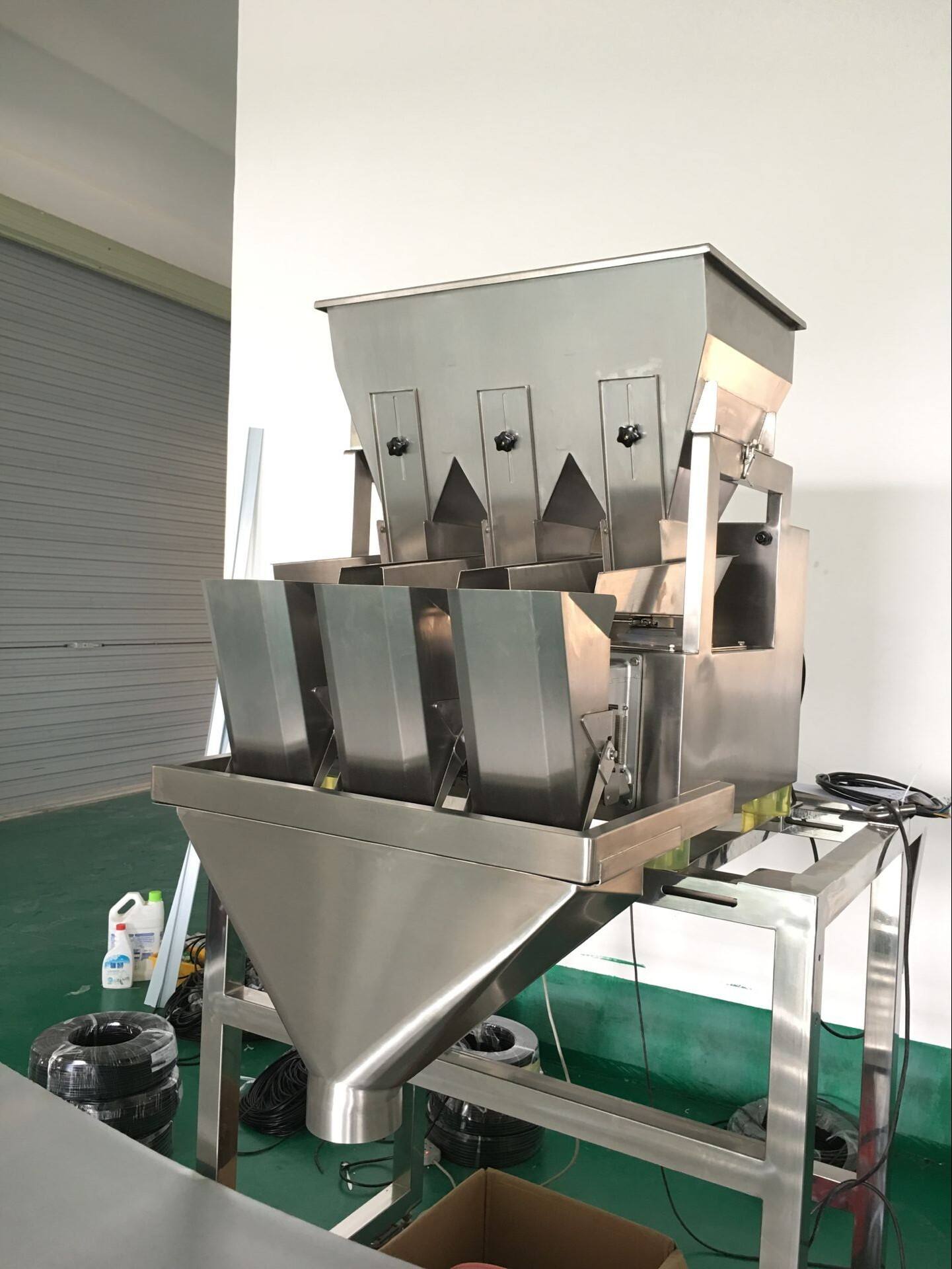

3 Head Linear Weigher
3 Head Linear Weigher
3 Head Linear Weigher
3 Head Linear Weigher
3 Head Linear Weigher
3 Head Linear Weigher

3 Head Linear Weigher

It is special designed for weighing small granular shape products, such as sugar, salt, seed, rice, sesame, glutamate, milk powder, coffee powder and seasoning powder, etc.

  • High precision digital load cell.

  • Controlled through industrial control pannel with extremely powerful processor.

  • Multilanguage choice (Translation is needed for some specific language).

Get a Quote
  • Introduction
  • Main Features
  • Application
  • FAQ
Introduction
Model CBW-1B3(30) CBW-1B6(30)
Single Weighing range 10–2000g 10–2000g
Avg. Accuracy 1~5g 1~5g
Max. production speed 10–30 wpm 10–50 wpm
Touch Screen 7inch 7inch
Hoppers Volume 3L 3L
Material 304#SS 304#SS
Driving system Step Motor Step Motor
Preset Programs 50 50
Max. Mix-Products 3 6
Power AC220V ±10% 50Hz(60Hz)0.6KW AC220V ±10% 50Hz(60Hz)1.1KW
Storage hopper volume 60L 160L
Control system Modular control system Modular control system
Packaging dimension L1010W*740H*985mm L1210W*1080H*1105mm
Gross weight 200kg 280kg


Main Features

• High precision digital load cell.

• Controlled through industrial control pannel with extremely powerful processor.

• Multilanguage choice (Translation is needed for some specific language).

• Different authority management.

• Weighing mix different products at one discharge.

• Parameters can be freely adjusted during running condition.

• New generation design, each actuator boards can exchange with each other.

• Intelligent malfunction alarm can help user troubleshoot problems quickly.

• Weigh hopper opening/closing controlled by step motors.

• Feeding by screw makes feeding more effectively and stable.

Application

It is special designed for weighing small granular shape products, such as sugar, salt, seed, rice, sesame, glutamate, milk powder, coffee powder and seasoning powder, etc.

image.png image.png image.png
Snow peas Haricot vert Sunflower seeds
image.png image.png image.png
Coffee beans Black rice Goji berries
FAQ

Q: Is Zhongshan Combiweigh ( called CBW ) a manufacturer?
A: Yes, we are the real manufacturer. We mainly specialized in researching, designing, manu- facturing, marketing and service of multihead weighers, linear weighers, etc. and providing customized weighing solution.
Q: What project can CBW do?
A: Auto or Semi-auto weighing and packaging solution for food and non food industry.
Q: What material can CBW handle and pack?
A: From fine or sticky powder, grain and irregular grains and frozen food or vegetables, etc.
Q: What industry CBW can apply for?
A: Pet food, beans, powder, confectionary, plastic, hardware, or frozen food, etc.
Q: How many kinds of hoppers CBW can supply?
A: For multihead weigher, CBW has 0.5L, 1L, 1.6L, 2.5L 5L hoppers.For linear weigher, CBWhas 3L, 5L, 7.5L, 24L hoppers. There are single-layer feeder pan and double-layer feeder pan for choice.
Q: How to ensure CBW machines' Quanlity?
A: We carry out a hard control procedure on our machines before shipment, including work- ing, aging, testing, and so on. In a word, we try our best to make sure our machine is with long-term stable performance.
Q: What is the warranty for CBW machines?
A: CBW guarantees the whole machine for 12 months, except the fragile parts, starting from the day which the machine is dispatched plus one month.
Q: Are your staff available for oversea installation and service?
A: Yes, we can arrange our staff to make overseas service as per request. In CBW, we have a professional technical supporting and after-sale service team.
