It is suitable for weighing small granules such as candy, seeds, tea, coffee beans, etc.
100 programs for multiple tasks.
Program recovery function can reduce operation failure.
High precision digital load cell.
| Item | CBW-1A10 (05) | CBW-1A14 (05) |
|---|---|---|
| Max. Cap. | 5–100 g | 5–200 g |
| Weighing Accuracy | 0.1–1.0 g | 0.1–1.0 g |
| Max. Weighing Speed | 60 WPM | 120 WPM |
| Hopper Volume | 0.5 L | 0.5 L |
| Control Panel | 7 inch Color Touch Screen | 7 inch Color Touch Screen |
| Driving System | Step Motor | Step Motor |
| Options | Dimple Plate / Timing Hopper / Printer / 9.7" Touch Screen | Dimple Plate / Timing Hopper / Printer / 9.7" Touch Screen |
| Power Supply | 220V / 800W / 50–60Hz / 8A | 220V / 1100W / 50–60Hz / 10A |

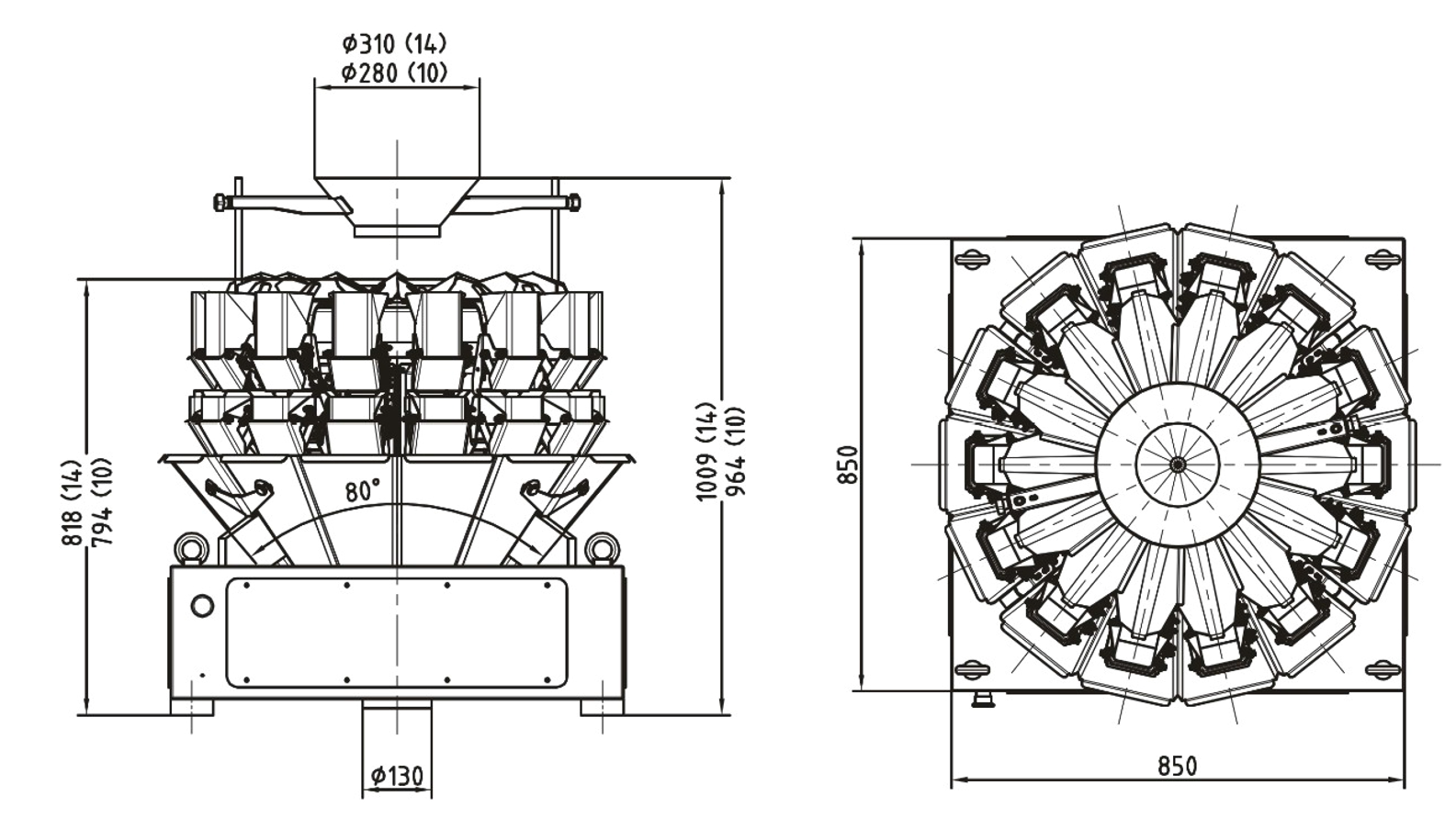

| Packing Dimension | L1200 × W980 × H980 mm | L1200 × W980 × H980 mm |
| Weight | 180 kg | 250 kg |
• 100 programs for multiple tasks.
• The program recovery function can reduce operational failures.
• High precision digital load cell.
• Linear amplitude can be adjusted independently.
• No products auto pause function can improve weighing stability and accuracy.
• In a modular control system, AD cards do not need a number and can be interchangeable.
• New actuator design reduces the mechanical vibration and improves the accuracy of the load cell.
• Each drive board is independent, can be changed freely, even in different weighers.
• Friendly HMI, similar to mobile phone operation icons, makes operation easier and simpler.
• Weighers with a strong self-checking function can realize the closed-loop testing, detect abnormalities in each node, and display them in the human-machine interface.
• The software versatility, strong compatibility, different weighers using the same control system.
It is suitable for weighing small granules such as candy, seeds, tea, coffee beans, etc.
