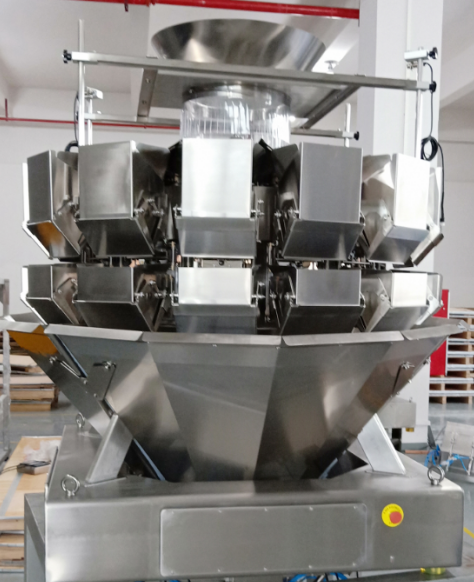

CBW-1A14(50) Modular big 14 head weigher

Collect

商品说明

CBW-1A14(50) Modular big 14 Head Weigher

商品参数

1. Application:

It is suitable for weighing big granule products, beans, nuts, fruits, vegetable and salad with large target weight or volume.

2. Features:

◆ User-friendly help menu in touch screen contributes to easy operation

◆ 100 programs for multiple tasks.

◆ Program recovery function can reduce operation failure.

◆ High precision digital load cell.

◆ No products auto pause function can improve weighing stability and accuracy.

◆ Modular control system, AD cards no need Number, can be interchangeable.

◆ Each drive board is independent, can be changed freely, even in different weighers.

◆ Friendly HMI, similar with mobile phone operation icons, make operation more easily and simple.

◆ Linear amplitude can be adjusted independently.

◆ 3-level password protection for administrators;

◆ Free set the parameter value during running;

◆ Screen with SS outlet covering avoid external shock;

◆ All the main menus can be observed at one screen;

◆Independent discharge chute.

3. Specifications:

Model	CBW-1A10(50)	CBW-1A14(50)
Max. Cap.(g)	100-3000g	100-5000g
Weighing Accuracy(g)	1-5g (depends on material)	1-5g (depends on material)
Weighing Speed	10-40WPM	10-70WPM
Hopper Volume	5000ml	5000ml
Control Panel	7"Touch Screen	7"Touch Screen
Options	Dimple Plate/Timing hopper/Rotary Top Cone/Printer/9.7’ touch screen
Driving System	Step Motor	Step Motor
Power Requirements	220V / 1500W / 50/60HZ / 10A	220V / 2000W / 50/60HZ / 12A
Packing size(mm)	1950(L)x1280(W)x1700(H)	L2195W1380H1810mm
Gross WGT	580KG	650KG
